PLC Computer Control C Z Purlin Roll Forming Machine
For Large-Scale Construction
Specifications
-
C-Z quick interchangeable machine adopts a special structure.
-
The rollers for C & Z are changed very quickly without dismantle any parts.
-
One machine can produce all specifications of C & Z purlins.
-
Crimples are optional to increase rigidity of purlin.
-
And the PLC can control adjust the any size in automatic.
Main technical data
| Item | Description |
| Main dimension (L x W x H) | 11000 x 1800 x1800mm |
| Total weight | 14000kg |
| Main motor | 15kW |
| Feeding, leveling motor power | 5.5KW |
| Feeding & guiding | two sets |
| Leveling | one set, seven rollers |
| Main forming | 15 steps |
| Rectifying | one step |
| Forming speed | 10-12 m/min (not include the punching and cutting time) |
| Adjust the size | control by PLC system |
| For C purlin | width: 80-350mm height: 40-80mm, small rib: 14-25mm |
| For Z purlin | width 80-350mm height: 40-80mm, small rib: 14-25mm |
| Suitable material | 1.2-3.5mm, Q195~235, G550 cold rolled steel, hot-zinc coil. |
| Material of rollers | GCr15, 9CrSi, quenched |
| Material of rib roller | GCr15, 40Cr, quenched |
Main compositions of machine
-
Roll forming main machine……………………1 unit
-
Manual Uncoiler………………………………………1 unit
-
Control panel………………………………………….1 unit
-
Hydraulic station…………………………………… 1 unit
-
Manual out table……………………… ……………2 unit
Control panel Panas
-
Voltage, Frequency, Phase: 415V, 50 Hz, 3Phase
-
Automatic length measurement:
-
Automatic quantity measurement
-
Computer used to control length & quantity.
-
Machine will automatically cut to length and stop when required quantity is achieved
-
Length inaccuracy can be amended easily.
-
Control panel: Button-type switch and touch screen
-
Unit of length: millimeter (switched on the control panel)
-
The program should be can set 5 different measure and quantity.

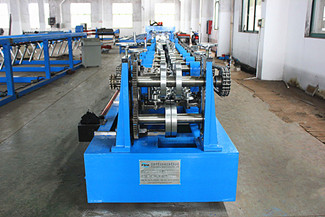

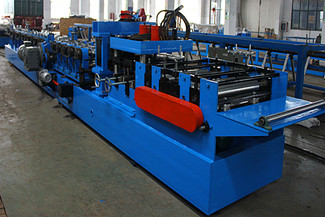

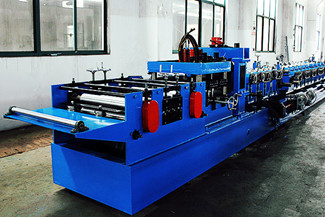

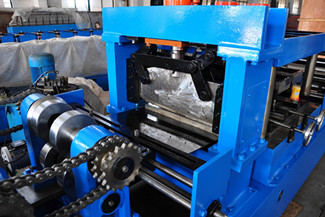

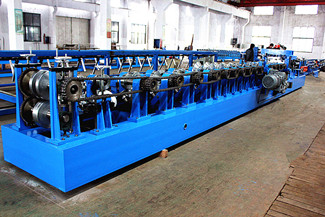

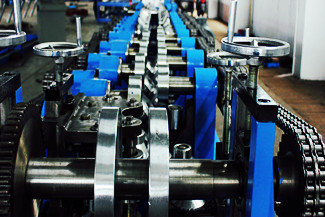

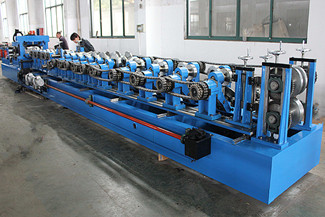

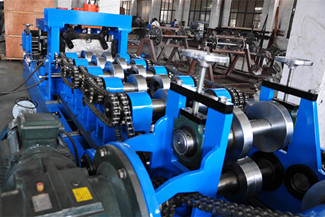

Some pictures of machine
Introduction of company
We, Friendshachinery Co., Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.Our manin products: Metal roof &wall panels machines, C&Z purlin machines drywall Stud-track forming machine,Metal decks machines,No- girder and Column curves forming machines,Guard rails forming machine,Downspout pipes forming machines and so on.
We can customize forming machine according to user's requirements.And we can provide professinal service,high quality,through design,and installation.
Warmly welcome to visit our factory no matter you are distibuters or end-users,and looking forward to cooperating with you for mutual benefits.
