Hydraulic Cutting C Z Purlin Roll Forming Machines
80mm - 350mm , Z Steel Purlins
Main technical Specification of machine
- Profile :z purlin
- Type :steel strip
- Material Thickness:1.2-3.5mm
- Working speed:15m/min(not include punching and cutting time)
- Roll station: 18 stations
- Roller material :GCr15,quenched
- Type of roller driven:motor or hydraulic
- Control of machine:PLC Panasonic
- Main power:15 KW
- Hydraulic power:7.5 KW
- Hydraulic punching and cutting
- Transmission :transmission by gearbox
- This machine adopt PLC control system,the size of Z purlin height and weight can be adjusted through the Panel touch.
Details data of roll forming main machine
| NO. | Item | Parameters |
| 1 | Purlin specifications | 80-350mm(width),40-80mm(height),14-25mm(small rib) |
| 2 | Coil thickness | 1.2-3.5mm Q195~235,zinc coils and hot rolled coils |
| 3 | Forming speed | 0-15m/min(not include punching and cutting) |
| 4 | Forming roller | 18 steps |
| 5 | Leveling roller | Five steps |
| 6 | Rectifying | One step |
| 7 | Feeding and guiding | Two sets, four rollers |
| 8 | Material of roller | GCr15,quenched |
| 9 | Material of main shaft | 45# steel |
| 10 | Main motor | 15KW |
| 11 | Feeding&leveling motor power | 7.5KW |
| 12 | Hydraulic power | 7.5KW |
| 13 | Hydraulic pressure | 15-20MPa |
| 14 | Transmission | By gearbox |
| 15 | Main dimension | 11000mm*1400mm*1400mm(L,W,H) |
| 16 | Total weight | 14000KG |
Composition of machine
- Roll forming main machine…………………………1 unit
- Hydraulic/Manual decoiler…………………………..1 unit
- Hydraulic punching.................................1 unit
- Hydraulic cutting....................................1 unit
- Control panel………………………………………….....1 unit
- Hydraulic station…………………………………….....1 unit
- Manual out table……………………… ……………....2 unit
Punching and Cutting device
- Punching mold: Cr12 HRC 58-62
- Machine with 3 sets punching system
- Punching with hydraulic drive
- Punching in longitude wise controlled by PLC, punching at horizontal wise adjusted by manual hand wheel.
- Punch details as shown in drawing.
- Hydraulic Cutting before forming:Cut the sheet before roll forming to required length.
- Cutting motion:The main machine not stop and the continue punching and cutting .
- Material of blade: CR12with heat treatment
- Length measuring: Automatic length measuring
- Tolerance of length: 3m+/- 1.5mm
Advantages of machine
- The auto-Z purlin roll forming machine is designed for the Z shape purlin.
- Z purlin roll forming machine adopt new station to increase the firmness of the machine.
- The machine adopt gearbox transmission to ensure machine working more stable.
- Machine adopt after-cutting to ensure quality of the cutting.
- Products are widely used in steel structure building.
- Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase.

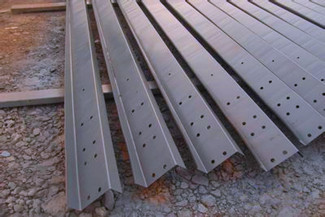

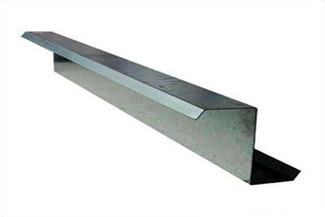

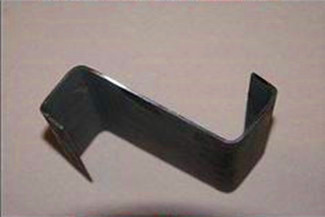

Profile of Z for reference

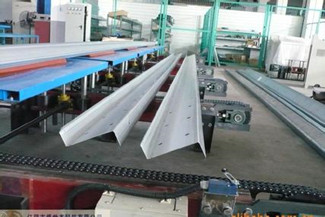

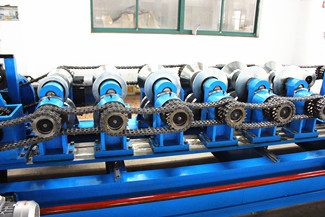

Some pictures of machine
